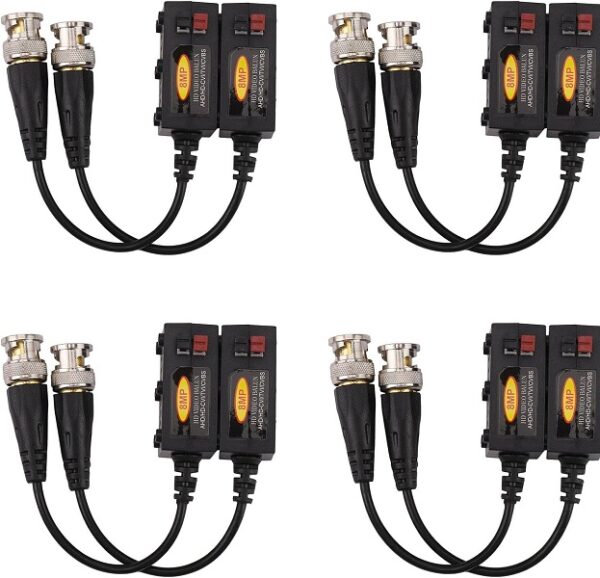

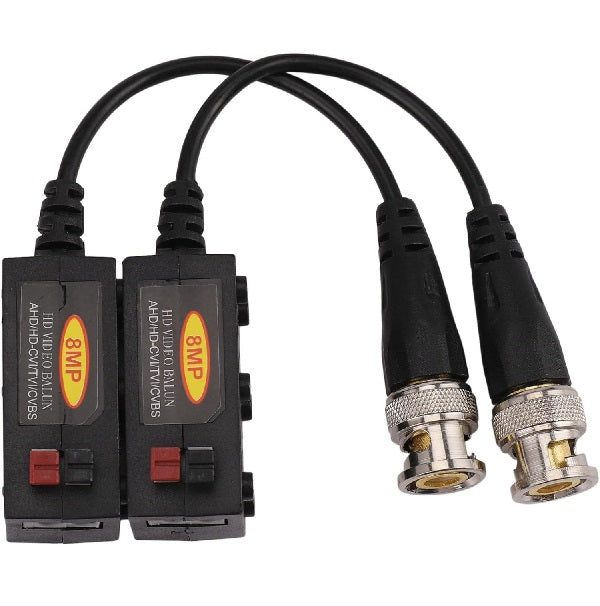

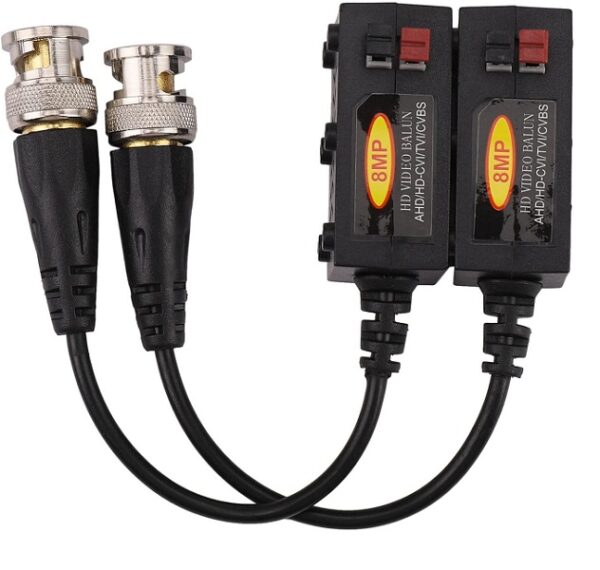

HD CCTV Passive Video Balun 5MP 4MP 3MP 1080P Support AHD/CVI/TVI/CVBS Network To BNC Transmitter With Surge Protection Support HD AHD/CVI/TVI/CVBS Signal 5MP/4MP/1080P/720P No power required Outstanding interface rejection and transient protection Male BNC allows connection directly to the camera or DVR Compact size and easy installation Built-in transient suppression protection Video transmission distance: 0-600 meters (CAT-5 / 5E / 6) Lightning Surge Protection (1000V max)*Built-in transient suppression protection Transmission distance HDCVI 720P:400M/ 1080P:300M/5MP:100M HDTVI 720P/1080P:300M/3MP:180M/5MP:100M AHD 720P/1080P:300M/3MP:180M/5MP:100M CVBS 500M Frequency Response: DC to 8MHz Attenuation: 0.5db type CMRR (Common Mode Rejection Ratio): 60db Impedance: BNC: 75 Ohm /Terminal: 100 Ohm Material: ABS Plastic
